Description
(Steps A&B)All my Pin-Up girls start out the same way with a simple blue pencil sketch using a 0.5 mm Pentel technical pencil with blue lead on 11"x17" copier paper. The reason I use Pentel blue lead is that it's almost non-photo blue and it doesn't smear. After I have a sketch that I'm happy with, I'll lay a piece of vellum over the blue pencil sketch and ink a line drawing with a .0 Koh-i-noor Rapidograph.
When the line art is complete, I'll make a copy of it, reducing it down 65% to 8.5"x11". This sharpens all the lines and eliminates the blue pencil lines. This copy will be scanned 100% at 300 dpi and saved as a Tiff file (Tag image file format). Next I open this Tiff file in Adobe Streamline.
(Step C)
Streamline is a very simple program for converting pixel art to vector art. In Streamline, I can do some minor touch up, using the eraser tool, erasing overdrawn lines and the pen tool, to connect incomplete lines. You want to have all closed lines, no breaks. If you have a break in a line it will leave an open space in your vector art. After I've cleaned up the Tiff file, I select convert and Streamline redraws my line art. Step C shows all the vector points. You are able to add or eliminate points with the pen tool. The green indicates broken lines that I have to fix.
(Steps D&E)

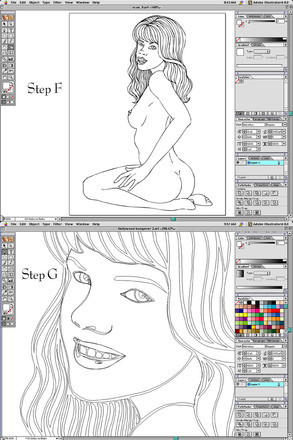

After I clean up any broken lines and shapes, I save the conversion. The program automatically saves the art as an Adobe Illustrator EPS file (Encapsulated Postscript).
